Marlin Bikes

MARLIN SPEAR 10

MARLIN SPEAR 10

Regular price Rs. 59,990.00
Regular price Rs. 59,990.00 Sale price Rs. 59,990.00
Sale Sold out
Shipping calculated at checkout.
Size

One of the best from Marlin Bikes, the Marin Spear10 is our chance to really push what our bang-for-your-buck MTB can do. Fast, comfy and fun. Light weight triple butted aluminum 6061 thru axle boost frame with latest shimano 1X drivetrain, SR/Suntour XCM32 thru axle boost fork. Shimano Deore 10-speed shifting, Tektro hydraulic brakes and trendy Maxxis tires.

  • FrameSet:
    • Frame: 6061 Aluminum, Triple Butted Frame with smooth weld and tapered headtube, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB, dropper post ready
    • Fork: Sr Suntour XCM32-Boost, 100MM travel with hydraulic lockout
    • Colour: Cool Grey
    • Decal: Water Decal
  • Drivetrain:
    • Shifters: Shimano Deore M4100 10-Speed
    • Crank: Prowheel Charm-FD04S-TT with 34T
    • Cassette: Shimano Deore M4100, 10 speed 11-46T
    • Rear Derailleur: Shimano RD-M5120 10 speed with clutch
    • Bottom Bracket: Prowheel HollowTech Sealed BB
    • Chain: KMC X-10
    • Pedals: Nylon, VP-536
  • Cockpit:
    • Saddle: Spate, Light weight Saddle
    • Seat Post: Alloy, 30.4x2.4Tx350mm with bolt
    • Handle Bar: Alloy31.8mm, 10mm rise, 760mm length
    • Head Set: Sealed bearing headset, 1-1/8” 44x55
    • Stem: Alloy Stem with 7°rise/drop, 60mm length
    • Grips: NPY, Silicone Grips
  • Wheel & Tire:
    • Rims: Aluminum alloy double wall, 32H, inner width 25mm
    • Wheel Size: 29 inch
    • F/R Hub: Solon DH908 BOOST, 4 Sealed bearing, thru axle hubs, 148 O.L.D
    • Spokes: Stainless Steel, G14
    • Tire & Tube: Maxxis Crossmark II, 29x2.25” 60TPI
  • Brake Set

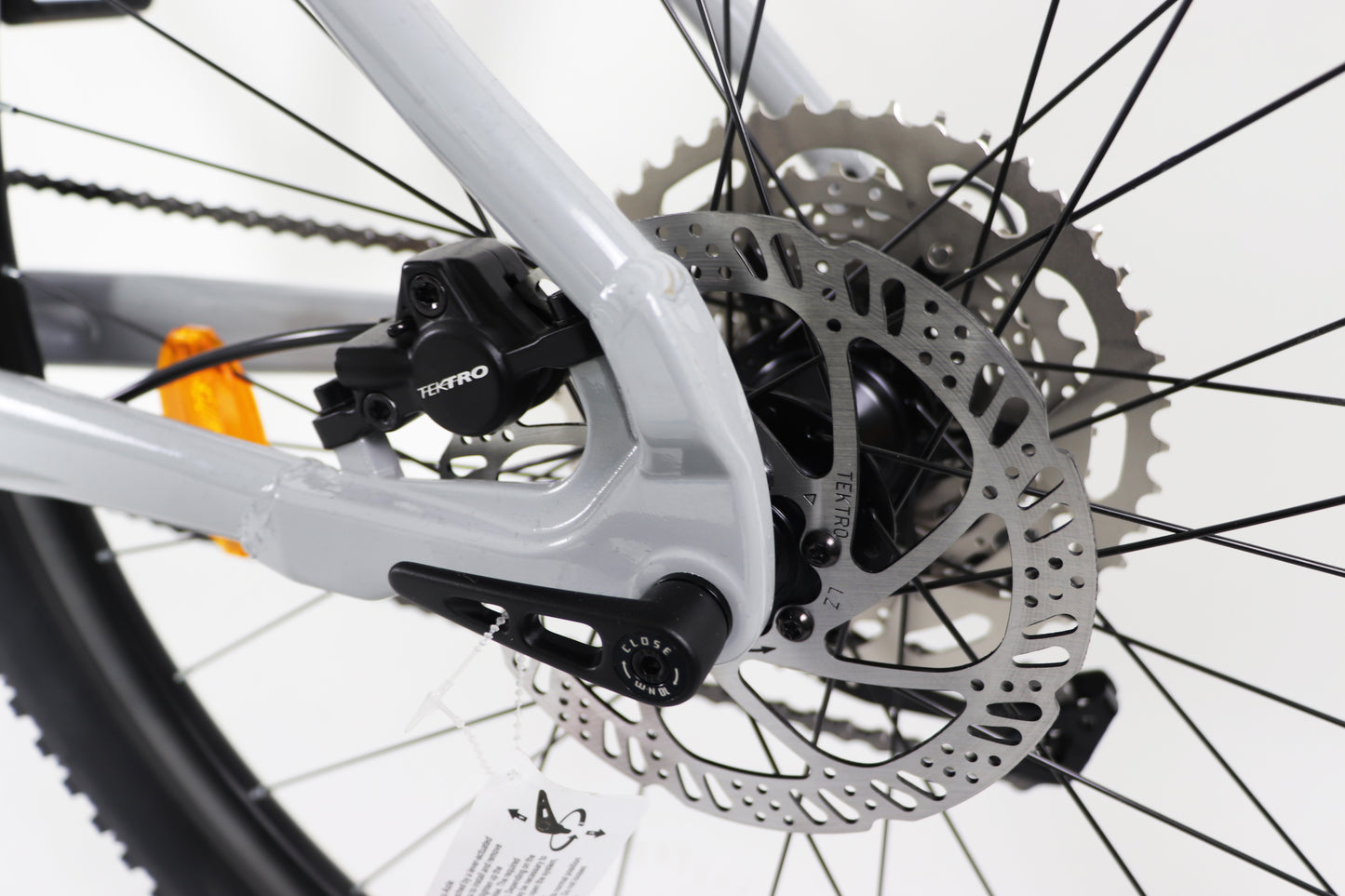

    • Brake Lever: Tektro HD- M275
    • Brake Caliper: Tektro HD-M275 F/R Hydraulic disc brakes
    • Rotor: Tektro rotor, 180mm front and 160mm Rear
  • Accessories:
    • Tool Kit
    • Reflectors
    • Chain-stay Protector
  • Weight: 14.5 kilograms
  • Ideal Height: M(165-176cm), L(175-186cm)
  • Max Weight: 130 kilograms (including bike weight)



Geometry & Size:

MM

M

L

Height(cm)

165-176

175-186

Seat Tube Length(A)

432

483

Seat Tube Angle (B)

73

73

Effective Seat Tube Angle (C)

73

73

Head Tube Length (D)

100

100

Head Tube Angle (E)

68.5

68.5

Effective Top Tube (F)

584.6

609.6

Bb Height (G)

308

308

Bb Offset (H)

60

60

Chainstay Length (I)

455

455

Wheelbase (J)

1106.5

1131.5

Frame Reach (K)

398.9

423.9

Frame Stack (L)

607.6

607.6

Standover Height (M)

715.6

755.5
