MARLIN M900
MARLIN M900
Couldn't load pickup availability
Created for riders who want a versatile mountain bike-built for suiting everyone from for-the-fun-of-it, recreational explorers to those looking to go further and faster on the off-road trails. Built with a lightweight and durable Aluminum 6061 frame with modern geometry for a more comfortable leisure ride. Super fun, super value with great specs, the M900 MTB is the perfect gateway bike into mountain biking.
Specification:
- FrameSet:
- Frame: Double Butted smooth weld, Aluminum Alloy 6061, tapered headtube, dropper post ready, QR
- Fork: Sr Suntour XCM30, 100MM travel with hydraulic lockout
- Colour: Matt Black, Military Green
- Decal: Water Decal
- Drivetrain:
- Shifters: Shimano Alivio M3100 2x9 shifter
- Crank: Shimano HYPERDRIVE MTB Crankset 2x9-speed, 36-22T
- Cassette: Shimano CS-HG200-9, 11-36T
- Front Derailleur: Shimano Alivio M3120, 2 Speed
- Rear Derailleur: Shimano Alivio M3100, 9 Speed
- Bottom Bracket: Shimano BB-UN101
- Chain: KMC Z-9
- Pedals: Nylon, VP-536
- Cockpit:
- Saddle: Spate, Light weight Saddle
- Seat Post: Alloy, 30.4x2.4Tx350mm with bolt
- Handle Bar: Alloy31.8mm, 10mm rise, 760mm length
- Head Set: Sealed bearing headset, 1-1/8” 44x55
- Stem: Alloy Stem with 7°rise/drop, 60mm length
- Grips: NPY, Silicone Grips
- Wheel & Tire:
- Rims: Aluminum alloy double wall, 32H, inner width 25mm
- Wheel Size: 29 inch
- F/R Hub: Solon DH802, 2 Sealed bearing
- Spokes: Stainless Steel, G14
- Tire & Tube: Kenda Booster, 29x2.2” 30TPI
- Brake Set:

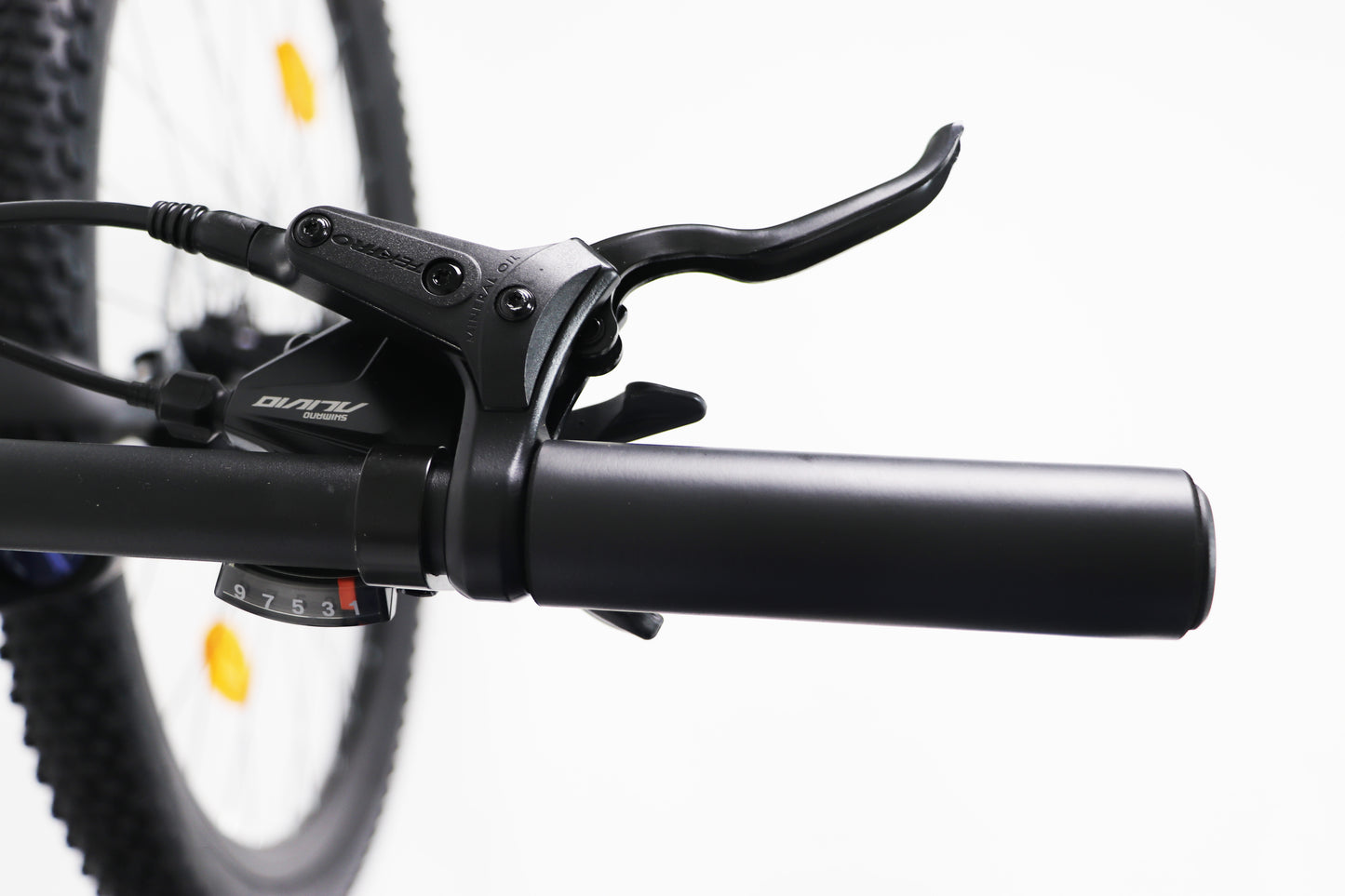

- Brake Lever: Tektro HD- M275
- Brake Caliper: Tektro HD-M275 F/R Hydraulic disc brakes
- Rotor: Tektro rotor, 180mm front and 160mm Rear
- Accessories:
- Tool Kit
- Reflectors
- Chain-stay Protector
- Weight: 14.7 kilograms
- Ideal Height: S(158-168cm), M(168-176cm), L(175-185cm), XL (186-195cm)
- Max Weight: 125 kilograms (including bike weight)
Geometry & Size:
MM |
S |
M |
L |
XL |
Height(cm) |
158-168 |
168-176 |
175-185 |
186-195 |
Seat Tube Length(A) |
381 |
432 |
483 |
533 |
Seat Tube Angle (B) |
72.5 |
72.5 |
72.5 |
72.5 |
Effective Seat Tube Angle (C) |
72.5 |
72.5 |
72.5 |
72.5 |
Head Tube Length (D) |
100 |
100 |
100 |
110 |
Head Tube Angle (E) |
69.5 |
69.5 |
69.5 |
69.5 |
Effective Top Tube (F) |
563.2 |
580.5 |
605.5 |
630.5 |
Bb Height (G) |
298 |
298 |
298 |
298 |
Bb Offset (H) |
70 |
70 |
70 |
70 |
Chainstay Length (I) |
455 |
455 |
455 |
455 |
Wheelbase (J) |
1063.7 |
1063.7 |
1105.9 |
1131.5 |
Frame Reach (K) |
367.1 |
384.3 |
423.9 |
431.4 |
Frame Stack (L) |
622 |
622 |
622 |
631 |
Standover Height (M) |
701.9 |
734 |
722.2 |
811 |
